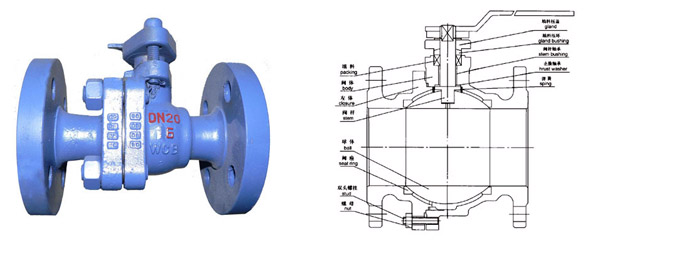

Q41F/PPL法蘭浮動球閥 |
應用規范：
1、設計制造造GB12235-89
2、結構長度按GB12221-89
3、法蘭尺寸按JB/T79-94
4、閥門檢查和試驗按APID.598
主要零件材料
|
序號
No. |
材料標準
|
材料牌號 |
序號
No. |
材料標準 |
材料牌號 |
|
碳鋼 |
不銹鋼 |
碳鋼 |
不銹鋼 |
| 零件名稱 |
GB |
ASTM |
GB |
ASTM |
零件名稱 |
GB |
ASTM |
GB |
ASTM |
|
01 |
閥體 |
WCB |
A216-WCB |
ZG1Cr18Ni9Ti
ZG1Cr18Ni12Mo2Ti |
CF8/CF8M/
CF3/CF3M |
10 |
閥座密封圈 |
石墨 |
|
02 |
閥蓋 |
WCB |
A216-WCB |
ZG1Cr18Ni9Ti
ZG1Cr18Ni12Mo2Ti |
CF8/CF8M/
CF3/CF3M |
11 |
閥桿 |
2Cr13 |
A276-410 |
1Cr18Ni9Ti
1Cr18Ni12Mo2Ti |
F304/F316/
F304L/F316L
|
|
03 |
雙頭螺柱 |
35CrMoA |
A193-B7 |
1Cr17Ni2 |
A193-B8M |
12 |
止推軸承 |
金屬夾PTEE |
|
04 |
螺母 |
45 |
A194-2H |
0Cr18Ni |
A194-8M |
13 |
閥桿填料 |
石墨 |
|
05 |
墊圈 |
金屬夾石墨 |
14 |
填料壓環 |
2Cr13 |
A276-410 |
1Cr18Ni9Ti
1Cr18Ni12Mo2Ti |
F304/F316/
F304L/F316L |
|
06 |
球體 |
2Cr13滲氮 |
A276-410滲氮 |
1Cr18Ni9Ti
1Cr18Ni12Mo2T
滲氮 |
F304/F316/
F304L/F316L
滲氮 |
15 |
填料壓蓋 |
WCB |
A216-WCB |
ZG1Cr18Ni9Ti
ZG1Cr18Ni12Mo2Ti |
CF8/CF8M/
CF3/CF3M |
|
07 |
閥座 |
2Cr13滲氮 |
A276-410滲氮 |
1Cr18Ni9Ti
1Cr18Ni12Mo2T
滲氮 |
F304/F316/
F304L/F316L
滲氮 |
16 |
螺釘 |
35CrMoA |
A193-B7 |
1Cr17Ni2 |
A193-B8M |
|
08 |
閥座支承圈 |
2Cr13 |
A276-410 |
1Cr18Ni9Ti
1Cr18Ni12Mo2T |
F304/F316/
F304L/F316L |
17 |
定位板 |
2Cr13 |
A276-410 |
1Cr18Ni9Ti |
304 |
|
09 |
閥座彈簧 |
17-7PH |
17-7PH |
17-7PH |
17-7PH |
|
|
|
|
|
|
PN1.6MPa主要連接尺寸
|
公稱通徑DN |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
|
L |
130 |
140 |
150 |
165 |
180 |
200 |
220 |
250 |
280 |
320 |
360 |
400 |
|
H |
59 |
63 |
75 |
80 |
95 |
107 |
142 |
152 |
178 |
252 |
272 |
342 |
|
W |
130 |
130 |
160 |
180 |
230 |
230 |
400 |
400 |
650 |
1050 |
1050 |
1410 |
PN2.5MPa主要連接尺寸
|
公稱通徑DN |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
|
L |
130 |
140 |
150 |
165 |
180 |
200 |
220 |
250 |
320 |
400 |
400 |
550 |
|
H |
59 |
63 |
75 |
97 |
107 |
142 |
152 |
178 |
252 |
272 |
342 |
345 |
|
W |
130 |
130 |
160 |
230 |
230 |
400 |
400 |
700 |
1100 |
1100 |
1500 |
1500 |
PN4.0MPa主要連接尺寸
|
公稱通徑DN |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
|
L |
130 |
140 |
150 |
165 |
180 |
200 |
220 |
250 |
320 |
400 |
400 |
550 |
|
H |
59 |
63 |
75 |
97 |
107 |
142 |
152 |
178 |
252 |
272 |
342 |
345 |
|
W |
130 |
130 |
160 |
230 |
230 |
400 |
400 |
700 |
1100 |
1100 |
1500 |
1500 |
PN6.4MPa主要連接尺寸
|
公稱通徑DN |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
|
L |
165 |
190 |
216 |
229 |
241 |
292 |
330 |
356 |
432 |
508 |
559 |
660 |
|
H |
59 |
63 |
75 |
97 |
107 |
142 |
152 |
178 |
252 |
272 |
305 |
398 |
|
W |
130 |
130 |
160 |
230 |
230 |
400 |
400 |
700 |
1000 |
1100 |
1500 |
1800 |
PN10.0MPa主要連接尺寸
|
公稱通徑DN |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
|
L |
165 |
190 |
216 |
229 |
241 |
292 |
330 |
356 |
432 |
508 |
559 |
660 |
|
H |
59 |
63 |
75 |
97 |
107 |
142 |
152 |
178 |
252 |
272 |
305 |
398 |
|
W |
130 |
130 |
160 |
230 |
230 |
400 |
400 |
700 |
1000 |
1100 |
1500 |
1800 |
|
| |
|
| |
|
 |
 |
